*重量：188g
*规格：64*31.5*73.3mm

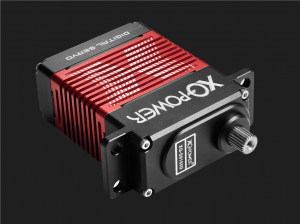

| 产品型号 Model: XQ-S9150D | ||||
| 1.使用环境条件 Apply Environmental Condition | ||||
| No. | Item | Specification | ||
| 1-1 | 存储温度 Storage Temperature Range | -20℃～70℃ | ||
| 1-2 | 运行温度 Operating Temperature Range | -10℃～60℃ | ||
| 2.测试环境 Standard Test Environment | ||||
| No. | Item | Specification | ||
| 2-1 | 温度 Temperature range | 25℃ ±5℃ | ||
| 2-2 | 湿度 Humidity range | 65%±10% | ||
| 3.机械特性 Mechanical Specification | ||||
| No. | Item | Specification | ||
| 3-1 | 尺寸 Size | 64.0*31.5*73.3 mm | ||
| 3-2 | 重量 Weight | 365 g | ||
| 3-3 | 齿轮类型 Gear type | Steel Gear | ||
| 3-6 | 机构极限角度 Limit angle | 180° | ||
| 3-7 | 轴承 Bearing | 2 Ball bearings | ||
| 3-8 | 出力轴 Horn gear spline | 15T 7.6 mm | ||
| 3-9 | 摆臂 Horn type | Metal | ||
| 3-10 | 外壳 Case | Aluminium CNC | ||
| 3-11 | 舵机线 Connector wire | 310 mm #20 AWG2pin #22 AWG3pin | ||
| 3-12 | 马达 Motor | BLS motor | ||
| 3-13 | 防水性能 Splash water resistance | Yes | ||
| 4.电气特性 Electrical Specification (Function of the Performance) | ||||
| No. | 工作电压 Operating Voltage Range | 2S（8.4 V） | 3S（12.6 V） | 4S（16.8V） |
| 4-1 | 空载速度 No load speed | 0.29 sec/60° | 0.18 sec/60° | 0.13 sec/60° |
| 4-2 | 空载电流 Runnig current(at no load) | 150 mA | 270 mA | 400 mA |
| 4-3 | 堵转扭矩 Peak stall torque | 90 kg.cm | 120 kg.cm | 150 kg.cm |
| 4-4 | 堵转电流 Stall current | 6.5 A | 8.8 A | 13A |
| 4-5 | 静态电流 Idle current | 50 mA | 50 mA | 50 mA |
