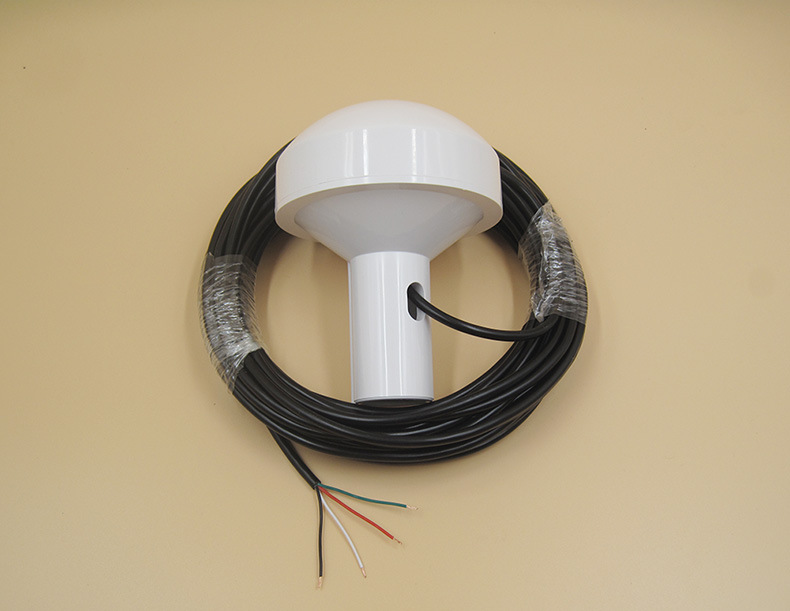

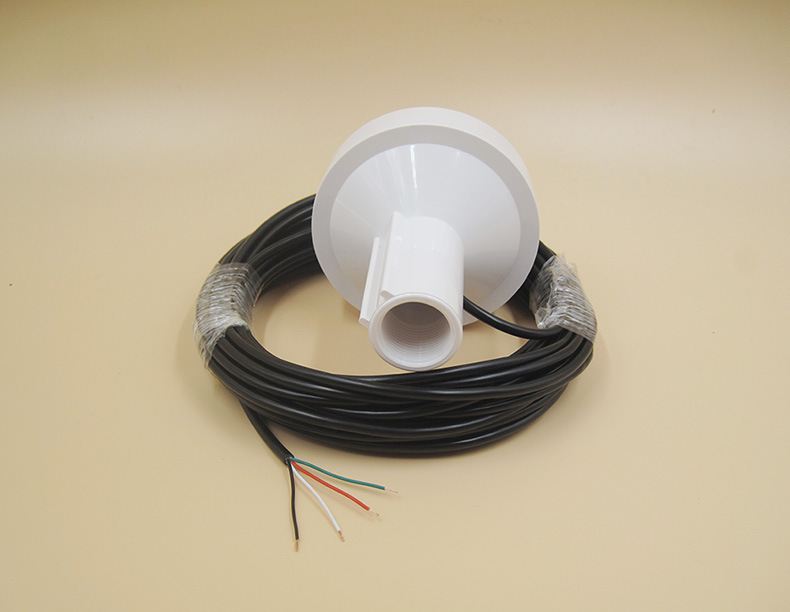

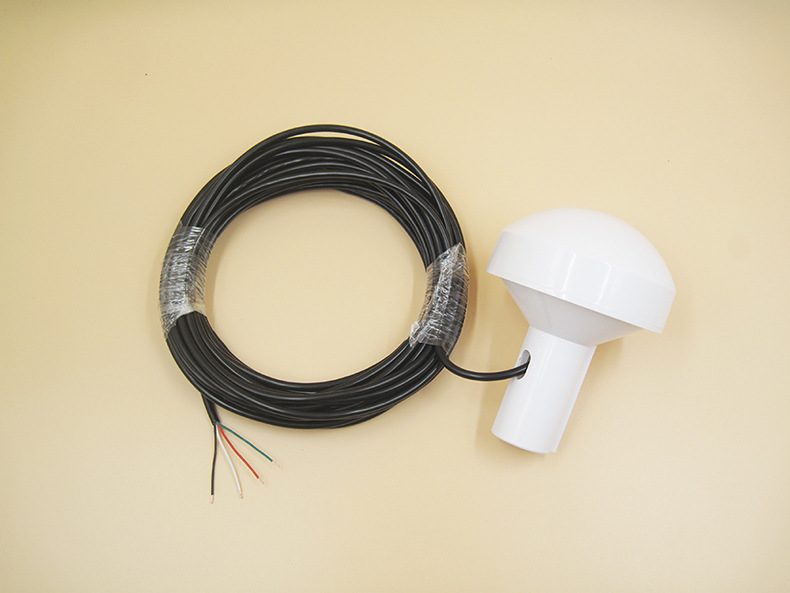

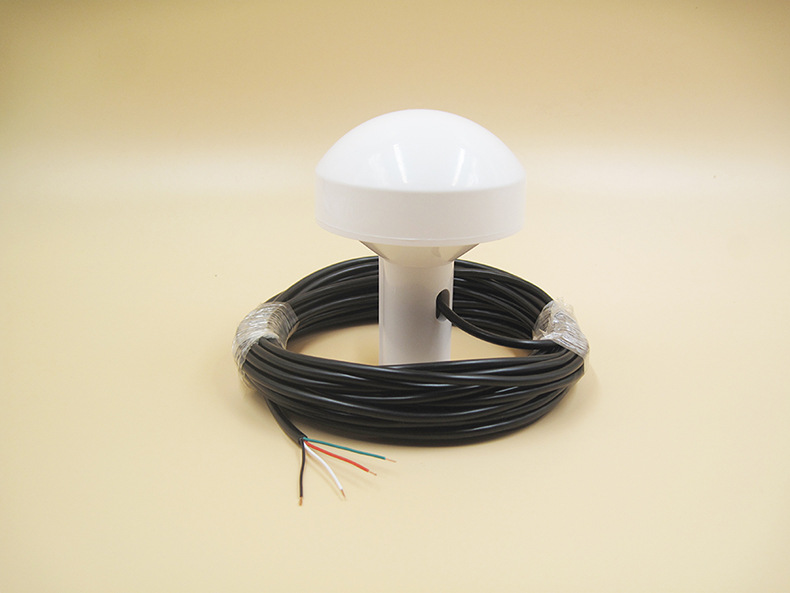

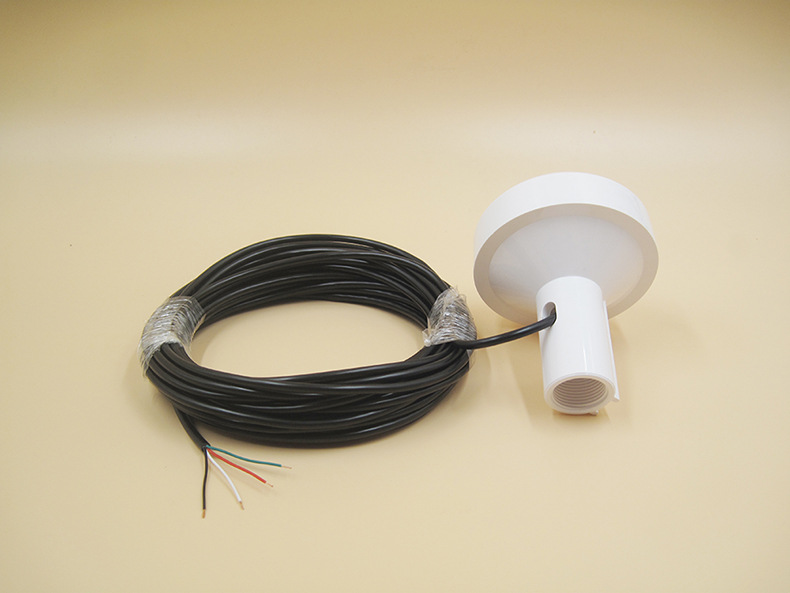

RS232/422/485 5/12V 蘑菇头壳航海GPS接收器 BS-270N

品牌：Beitian
最小起订：1 个
供货总量：341231 个
发货期限：3 天内发货
有效期至：长期有效
更新时间：2022-04-09 08:47
立即询价

加入收藏

普通商家

深圳市北天通讯有限公司
经营模式：零部件制造商其他
地区：中国广东省深圳市
电话：400-003-8030
进入店铺

联系方式

企业推荐产品

更多>

产品详情

产品参数

产品图片

了解具体请直接联系，期待您的来电！
默认出货：米，12V供电，232电平输出，4800，1HZ输出，标NMEA-0183协议(RMC,GGA,GSA,GSV四条语句)输出。

1.内置高精度GPS模块+28db增益二级放大有源天线，高精度0.5米--2.0米。

2.波特率可选，4800，9600，38400，115200。
3.输出语句：RMC,VTG,GGA,GSA,GSV,GLL可选择输出。
4.电平可以选。TTL或者RS232.
5.数据输出频率可选，1HZ--10HZ.

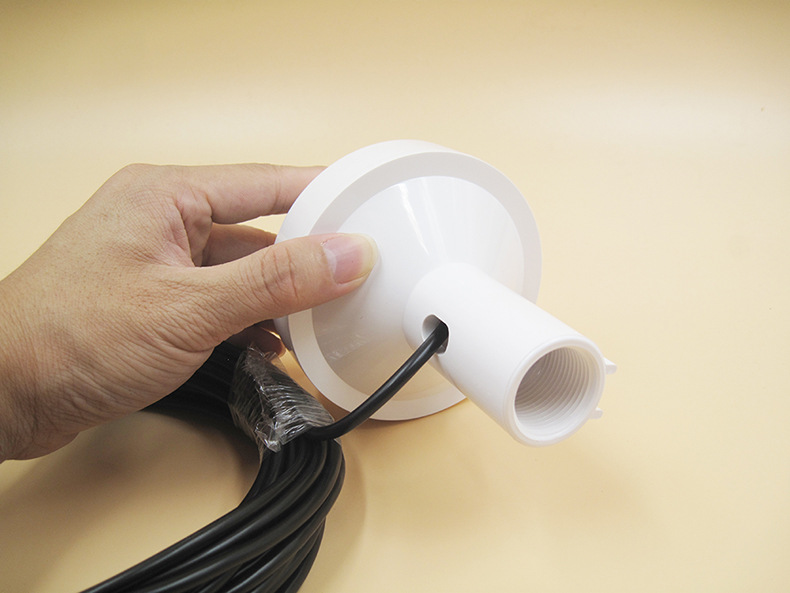

本店支持修改：底座、接口、线长、模式、等

支持接口

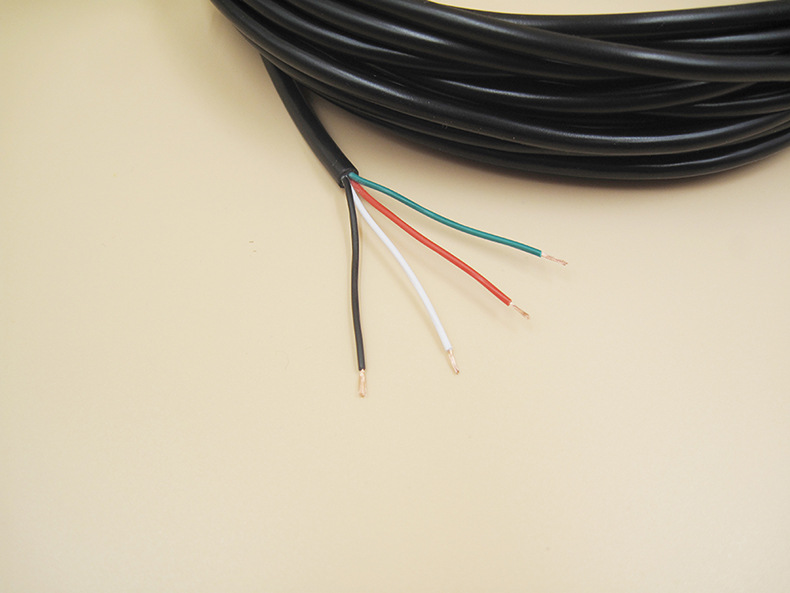

1：DIY四根线 2：DB9 3：四根线带屏蔽网 4：USB 5：DB9+两根电源线 6：DB9+USB线 7：航空头

接口定义，可以根据客户的要求定做。

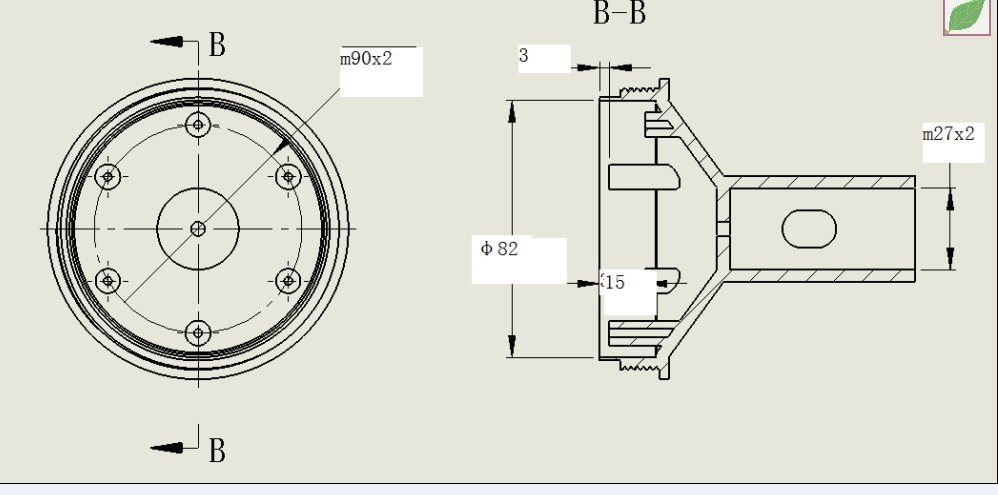

尺寸图：

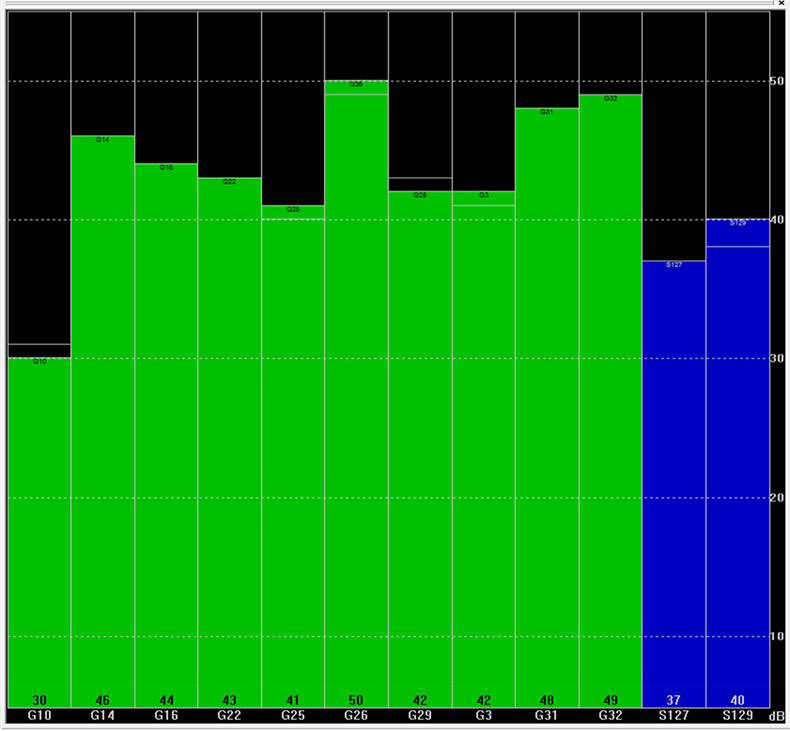

GPS信号测试和数据测试：

01:45:54 $GPRMC,014554.000,A,2240.8412,N,11402.7073,E,0.01,0.00,220319,,,A*6B
01:45:54 $GPGGA,014554.000,2240.8412,N,11402.7073,E,1,07,1.1,75.5,M,-2.5,M,,0000*79
01:45:54 $GPGSA,A,3,10,25,32,31,14,29,26,,,,,,2.4,1.1,2.2*3B
01:45:55 $GPRMC,014555.000,A,2240.8412,N,11402.7073,E,0.01,0.00,220319,,,A*6A
01:45:55 $GPGGA,014555.000,2240.8412,N,11402.7073,E,1,07,1.1,75.5,M,-2.5,M,,0000*78
01:45:55 $GPGSA,A,3,10,25,32,31,14,29,26,,,,,,2.4,1.1,2.2*3B
01:45:56 $GPRMC,014556.000,A,2240.8411,N,11402.7073,E,0.01,0.00,220319,,,A*6A
01:45:56 $GPGGA,014556.000,2240.8411,N,11402.7073,E,1,07,1.1,75.5,M,-2.5,M,,0000*78
01:45:56 $GPGSA,A,3,10,25,32,31,14,29,26,,,,,,2.4,1.1,2.2*3B
01:45:57 $GPRMC,014557.000,A,2240.8411,N,11402.7073,E,0.02,0.00,220319,,,A*68
01:45:57 $GPGGA,014557.000,2240.8411,N,11402.7073,E,1,10,0.7,75.4,M,-2.5,M,,0000*79
01:45:57 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:45:58 $GPRMC,014558.000,A,2240.8411,N,11402.7073,E,0.03,0.00,220319,,,A*66
01:45:58 $GPGGA,014558.000,2240.8411,N,11402.7073,E,1,10,0.7,75.4,M,-2.5,M,,0000*76
01:45:58 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:45:58 $GPGSV,3,1,12,10,49,178,42,12,07,036,35,14,51,351,40,20,22,165,33*79
01:45:58 $GPGSV,3,2,12,22,15,316,35,25,41,045,38,26,35,206,37,29,15,102,37*7F
01:45:58 $GPGSV,3,3,12,31,51,306,43,32,59,020,44,40,20,257,33,42,46,123,35*75
01:45:59 $GPRMC,014559.000,A,2240.8411,N,11402.7073,E,0.01,0.00,220319,,,A*65
01:45:59 $GPGGA,014559.000,2240.8411,N,11402.7073,E,1,10,0.7,75.4,M,-2.5,M,,0000*77
01:45:59 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:46:00 $GPRMC,014600.000,A,2240.8411,N,11402.7073,E,0.02,0.00,220319,,,A*69
01:46:00 $GPGGA,014600.000,2240.8411,N,11402.7073,E,1,10,0.7,75.4,M,-2.5,M,,0000*78
01:46:00 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:46:01 $GPRMC,014601.000,A,2240.8411,N,11402.7073,E,0.01,0.00,220319,,,A*6B
01:46:01 $GPGGA,014601.000,2240.8411,N,11402.7073,E,1,10,0.7,75.6,M,-2.5,M,,0000*7B
01:46:01 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:46:02 $GPRMC,014602.000,A,2240.8411,N,11402.7073,E,0.04,0.00,220319,,,A*6D
01:46:02 $GPGGA,014602.000,2240.8411,N,11402.7073,E,1,10,0.7,75.7,M,-2.5,M,,0000*79
01:46:02 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:46:03 $GPRMC,014603.000,A,2240.8411,N,11402.7073,E,0.03,0.00,220319,,,A*6B
01:46:03 $GPGGA,014603.000,2240.8411,N,11402.7073,E,1,10,0.7,75.8,M,-2.5,M,,0000*77
01:46:03 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
01:46:03 $GPGSV,3,1,12,10,49,178,41,12,07,036,35,14,51,351,40,20,22,165,34*7D
01:46:03 $GPGSV,3,2,12,22,15,316,34,25,41,045,39,26,35,206,37,29,15,102,36*7E
01:46:03 $GPGSV,3,3,12,31,51,307,43,32,59,020,44,40,20,257,33,42,46,123,35*74
01:46:04 $GPRMC,014604.000,A,2240.8411,N,11402.7073,E,0.03,0.00,220319,,,A*6C
01:46:04 $GPGGA,014604.000,2240.8411,N,11402.7073,E,1,10,0.7,75.8,M,-2.5,M,,0000*70
01:46:04 $GPGSA,A,3,10,25,32,31,14,29,26,12,20,22,,,1.3,0.7,1.1*39
