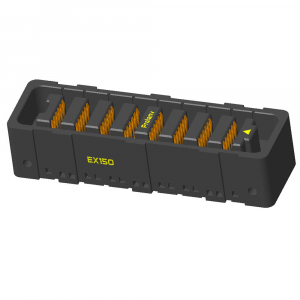

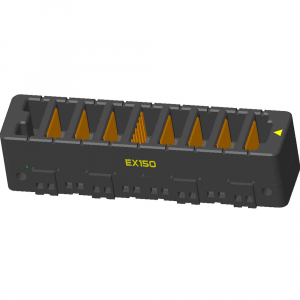

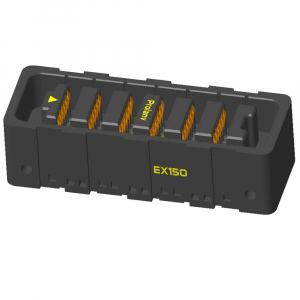

PDC33+PDC34 Type

PDC33+PDC34 Type
PDC33+PDC34 Type
PDC33+PDC34 Type
PDC33+PDC34 Type
PDC33+PDC34 Type

  • 80.00 扫码手机看
  • 品牌:Prolanv
  • 最小起订:200 pcs
  • 供货总量:20000 pcs
  • 发货期限:15 天内发货
  • 有效期至:长期有效
  • 更新时间:2021-06-28 12:22
  • 立即询价

    加入收藏

    无人机网(www.youuav.com)客服咨询  无人机网(www.youuav.com)客服咨询

普通商家

热门推荐

企业推荐产品

更多>

产品详情

产品参数

产品图片

A Revolutionary Patent Family
(Water-Proof and New-cooling structure)
创新式专利族产品 (防水式和高效热传导/热辐射设计)

Notes:
1. Material Specification
  1-1.Housing: High Temperature Thermoplastic. UL94 V-0, Black.
  1-2.Contact: High Conductivity Copper Alloy.
2. Plating Specification:
  2-1.Contact: Au30μ"  plating on Contact area, matte Tin 80μ" min. on Tails, and 50μ" min, Nickel overall.
3. Electrical performance
  3-1.Voltage Rating: 600v DC/250v AC/Power Blade, 120v AC/DC/Signal Pin.
  3-2.Current Rating: 150A Max./per Power Blade, 7.5A Max./per Signal Pin.
  3-3.LLCR: initial 0.5mΩ max., finished 1.0mΩ max.(per Power Blade ),
                  initial 10mΩ max., finished 20mΩ max.(per Signal Pin ).
  3-4.Dielectric Withstanding Voltage: 2000v DC rms/Power Blade, 500v DC rms/Signal Pin.
  3-5.Insulation Resistance: 5000 MΩ min/Power Blade.
4. Mechanical Performance:
  4-1.Insertion force: 294N (30 kgf) (max.)
  4-2.Withdrawal force: 9.8N~196N (1.0~20.0 kgf).
  4-3.Durability life: 10,000 cycles (max.)
5. IR Reflow:
    The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~105°c(without loss function).
7. All parts RoHS and Reach compliant.
