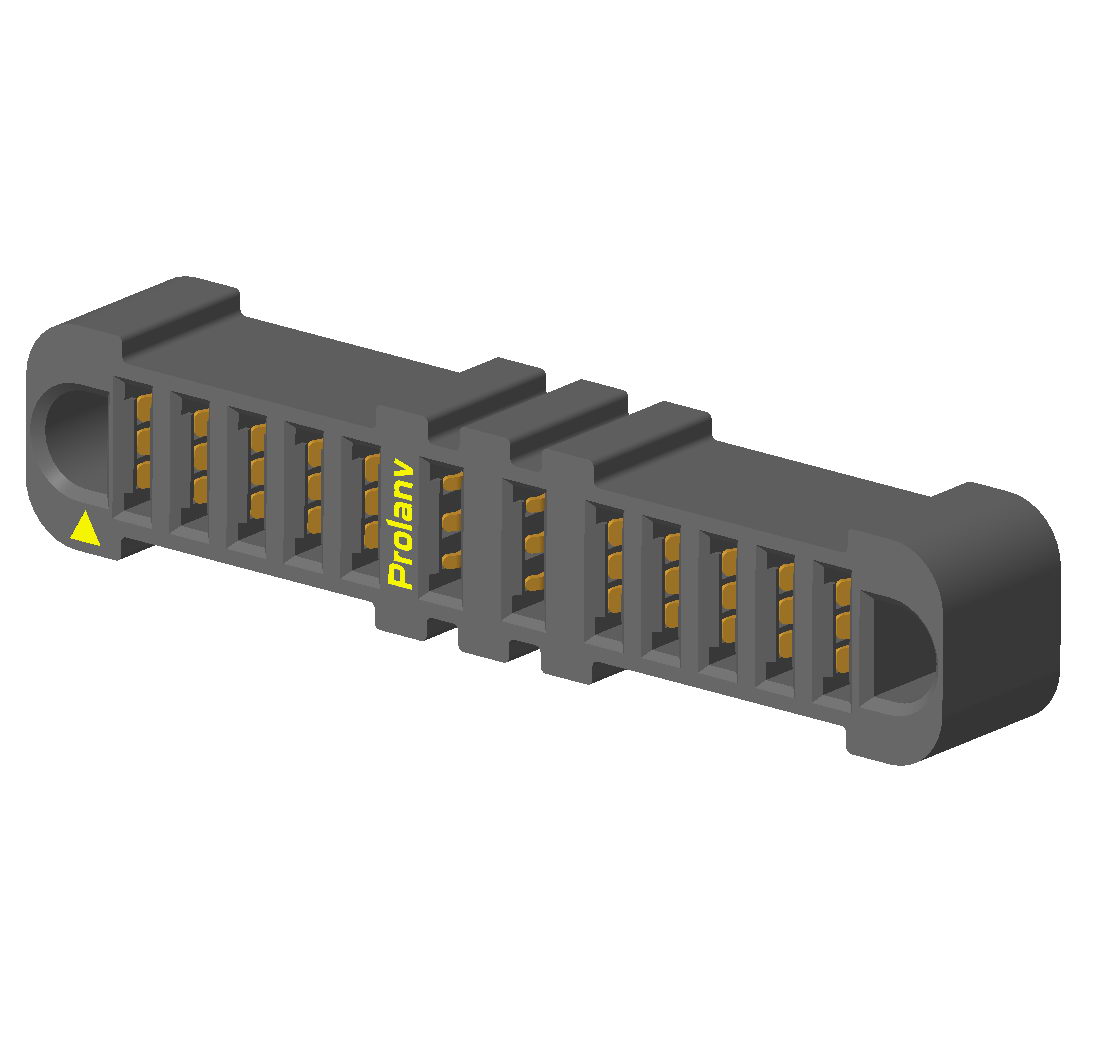

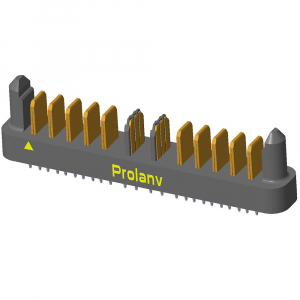

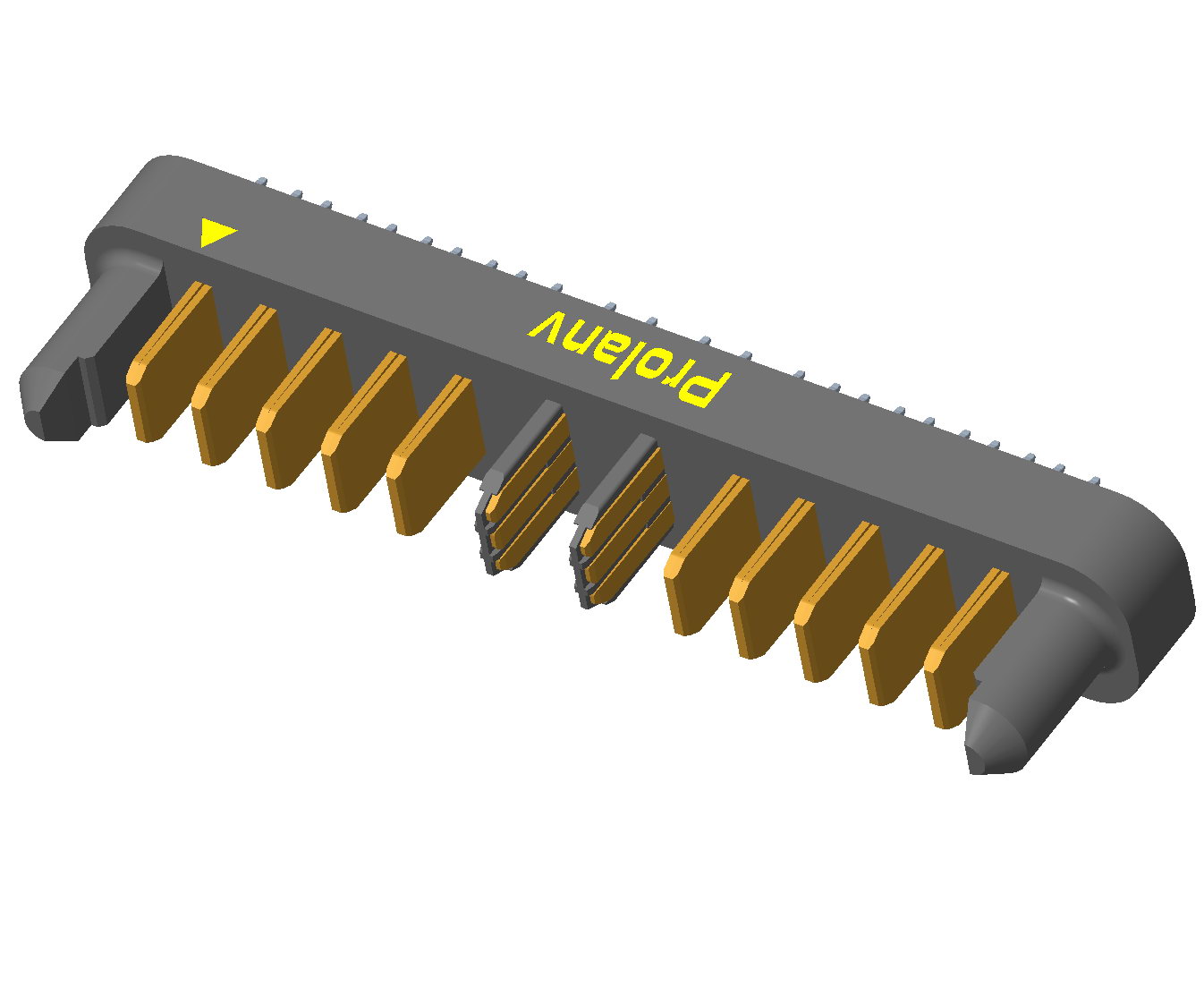

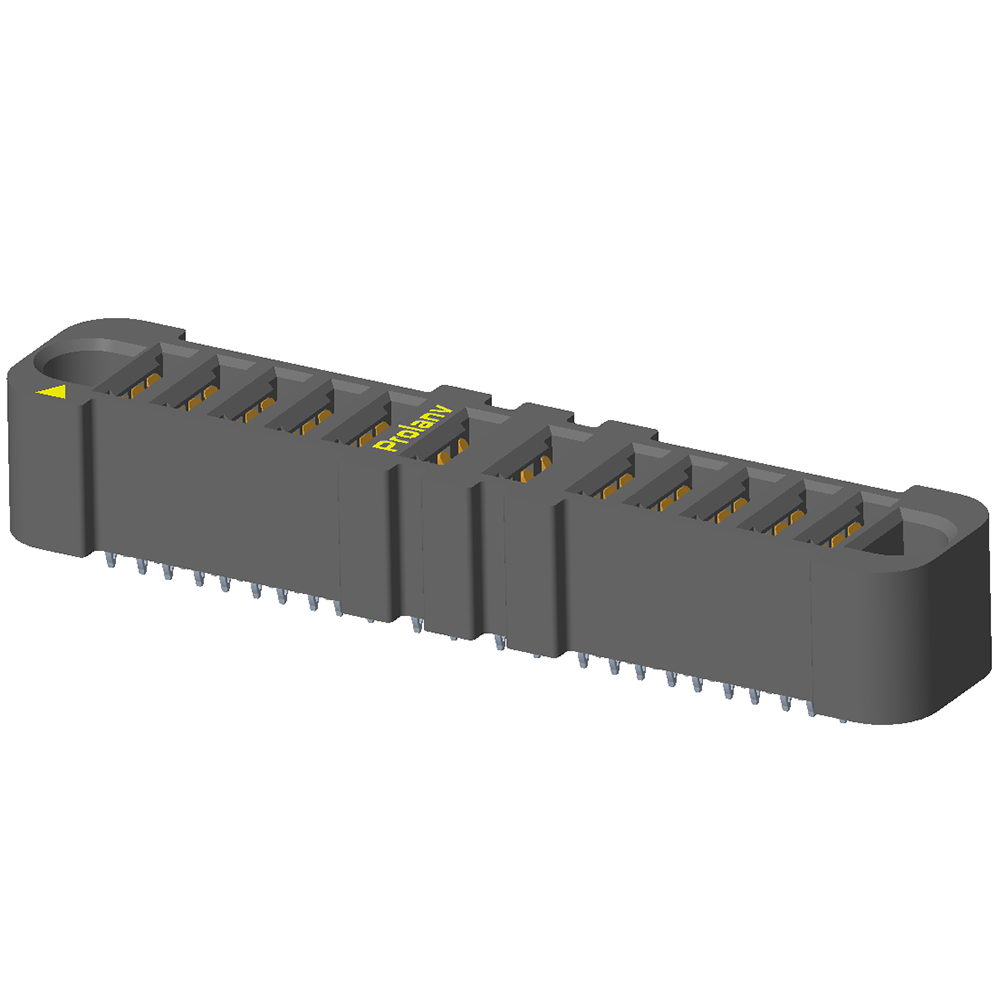

PDC21*+PDC22* Type

PDC21*+PDC22* Type
PDC21*+PDC22* Type
PDC21*+PDC22* Type
PDC21*+PDC22* Type
PDC21*+PDC22* Type

  • 50.00 扫码手机看
  • 品牌:Prolanv
  • 最小起订:200 pcs
  • 供货总量:2000 pcs
  • 发货期限:15 天内发货
  • 有效期至:长期有效
  • 更新时间:2021-06-28 12:15
  • 立即询价

    加入收藏

    无人机网(www.youuav.com)客服咨询  无人机网(www.youuav.com)客服咨询

普通商家

热门推荐

企业推荐产品

更多>

产品详情

产品参数

产品图片

Notes:
1. Material Specification
  1-1.Housing: High Temperature Thermoplastic, UL94 V-0, Black.
  1-2.Contact: High Conductivity Copper Alloy.
2. Plating Specification:
  2-1.Contact: Gold plating.
3. Electrical performance
  3-1.Voltage Rating: 250v DC/Power Pin, 120v DC/Signal Pin.
  3-2.Current Rating: 60A/per Power Blade, 3A/Signal Pin.
  3-3.LLCR: initial 0.6mΩ max., finished 1.0mΩ max.(per Power Blade ) ,  initial 10mΩ max., finished 20mΩ max.(per Signal Pin)
  3-4.Dielectric Withstanding Voltage: 1500v DC rms/Power Blade; 500v DC rms/Signal Pin,
  3-5.Insulation Resistance: 5000 MΩ min/power blade; 500 MΩ min/signal pin;
4. Mechanical Performance:
  4-1.Insertion force: 245N (25.0 kgf) (max.)
  4-2.Withdrawal force: 9.8N~147N (1.0~15.0 kgf).
  4-3.Durability life: 10,000 cycles max.
5. IR Reflow:
    The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~105°c(without loss function).
7. All parts RoHS and Reach compliant.
