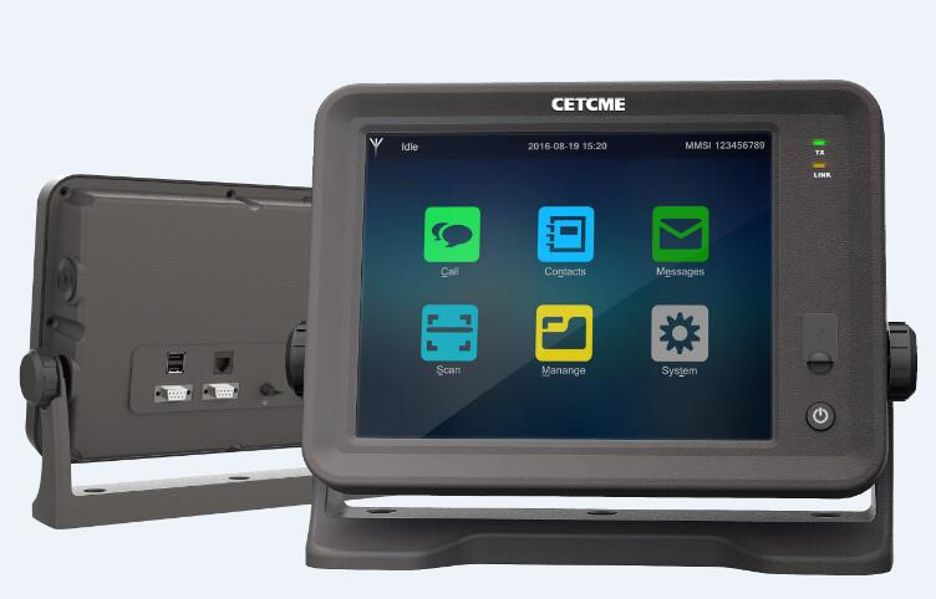

窄带直接印字电报终端 (NBDP) NB-1501

窄带直接印字电报终端 (NBDP) NB-1501

普通商家

热门推荐

产品详情

产品参数

产品图片

产品概述/ Product overview:

NB-1501信息终端(NBDP)是GMDSS系统的重要组成部分,与WT-B150中高频海事电台一起构成中/高频组合电台,产品采用先进软件无线技术,提供更优秀的收发性能,符合GMDSS强制性规范要求。

Information terminal (NBDP) is the important part of GMDSS system. NBDP and WT-B150 constitute a M/F frequency combination station. Adopting advanced software radio technology, it can provide more outstanding reception, transmission and operation performance. It is in accordance with the mandatory requirements of GMDSS.

产品用途/ Function:

该产品主要用户是各类船舶。根据国际海事规则,A3-A4海区作业的船舶必须安装该设备。

The main users of the product are all kinds of ships. According to the international maritime regulations, the device must be installed on the ships operating in A3-A4 sea area.

产品特点/ Feature:

支持软件远程升级功能;

The function of remote software upgrade.

提供符合GMDSS要求的自动检错纠错电传通信和遇险消息处理;

Providing automatic error-free telex communication and distress message handling in compliance with the GMDSS;

基于10.4英寸彩色TFT液晶显示屏,支持键盘操作;

Based on 10.4 inch color TFT LCD screen and touch screen design, supporting for touch screen operation and keyboard operation;

基于Cortex-A8平台设计,提供2GB RAM 、32GB ROM,软件运行更流畅、消息存储功能更强大;

Based on Cortex-A8 platform design, providing 32GB RAM, 2GB ROM, software running more smoothly, more powerful message storage technologies;

采用流行的简洁、平面化的设计风格,操作界面更友好、更人性化;

Using the popular simple, graphic design style, the operating interface is more friendly and more humane;

支持台式安装和嵌入式安装;

Desktop installation and embedded installation.

符合IEC 60945、IEC61097-09、IMO A.806(19)、IMO A.694(17)、ITU-R Rec.625-3规范要求;

Comply with IEC 60945、IEC61097-09、IMO A.806(19)、IMO A.694(17)、ITU-R Rec.625-3 specification requirements;

技术指标/ Specifications:

显示屏幕:10.4英寸彩色TFT液晶显示屏;

Display Screen: 10.4 inch color TFT LCD screen + touch screen;

工作频率:发射:1.605MHz~27.5MHz;接收:0.5MHz~30MHz;

Frequency Range: 1.605MHz~27.5MHz (transmitting), 0.5MHz~30MHz(receiving);

工作模式/ Modulation Mode:F1B;工作温度/ Operation Temperature:-15℃~55℃;储存温度/ Storage Temperature:-55℃~70℃;环境湿度/ Ambient Humidity:95%(35℃时);供电电压/ Power Supply Voltage:24V DC-30%~24V DC+10%;

对外接口/ External Interface:RS-232、USB、10M/100M网络口;/ RS-232, USB, 10M/100M network port
