Penguin B platform ready for payload
and autopilot integration
-
20+ hour endurance
-

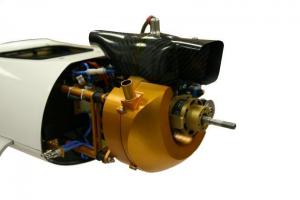

Fuel injected engine option
-
Up to 10 kg payload capacity
-
80 W power from onboard generator
system
|
-
Free Piccolo® autopilot configuration files
-
Catapult, car-top or runway takeoff
-
Wide range of standard subsystems and
options
-
Extensive documentation set
-
Short lead time for standard
configurations
|
Penguin's philosophy:

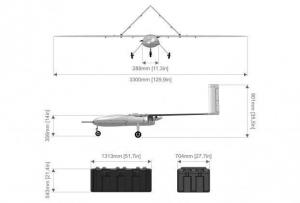

Designed as a high performance unmanned aircraft, Penguin B is capable of up to 26.5 hour endurance with the 4 kg payload. With a small footprint of 3.3 meter wingspan, Penguin B can handle up to 11.5 kg of combined fuel and payload weight. Modular composite structure, fast assembly, large access hatches, removable payload bay, are the key features of the Penguin B innovative design.
Available as an airframe ready for the autopilot and payload integration.
Performance:
Sleek and efficient design gives best in class performance. Optimized for endurance, Penguin has enough internal volume to lift 7.5 liters of fuel which will provide 20+ hours endurance with the fuel injected engine. The optimized high lift flap system provides stall speeds of <13 m/s while giving excellent flight handling qualities due to a well designed Vtail geometry.

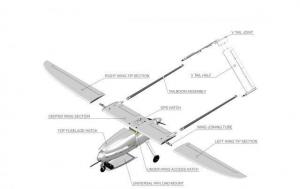

Modular design:
All components of the Penguin B are easily removable and completely interchangeable. Wing splits in three 1.1 meter sections and the V-tail splits in two parts. High-end industrial grade push-pull connectors are installed in tail-boom joints as standard. The quick release fastening is used extensively in Penguin B airframe. Oversize access covers are equipped with DZUS type 1/4 turn quick fasteners, tail-booms are equipped with a purpose developed quick release aluminum joints.
