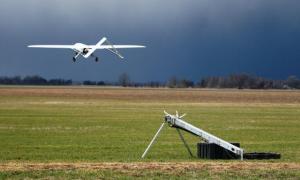

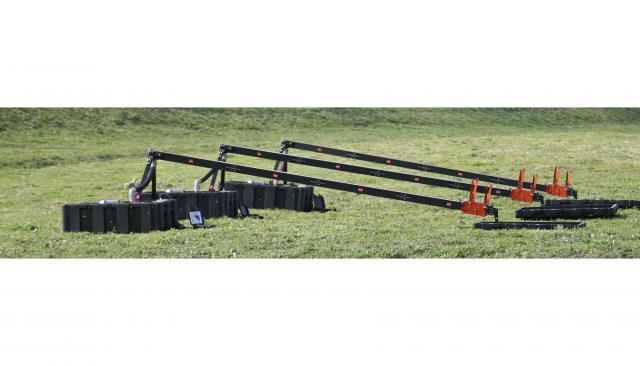

The catapult features a rugged aluminum structure, which can be disassembled into a man portable transportation case. UAV Factory offers carriage customization services for client’s unmanned aircraft vehicles.
-
6 kJ man-portable catapult
-
24 m/s maximum speed
-
Designed for 1000s of launches
-
Simple and quick assembly
-
Smart safety features
-
Well defined maintenance schedule
-
Can be factory customized for client's UAVs
![]()
|
Remote control box with advanced safety features: audible alarm, voltage and pressure displays, permanent launch counter.
|
Product Specification
|
PARAMETER
|
VALUE
|
|
Rail Length
|
4 m / 13.1 ft
|
|
Maximum Launching Energy
|
6000 J
|
|
Maximum UAV Weight
|
35 kg / 77.2 lbs
|
|
Maximum Launch Speed
|
24 m/s / 46.65 kts
|
|
Maximum Launch Pressure
|
10 Bar / 145 Psi
|
|
Packaging
|
Rugged case
|
|
Packed Weight
|
110 kg / 242.5 lbs
|
|

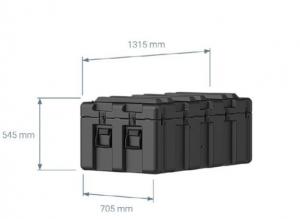

Packed size
|
1313 x 704 x 543 mm / 51.7 x 27.7 x 21.4 in
|
|
Input Voltage
|
11-16 VDC
|
|
Input Current
|
20 A
|
|
Fuse Protection
|
30 A
|
|
Typical fill time
|
<10 min
|
|
Operational temperature
|
-20°C to +50°C
|
