RC charger advantage
1. our product high efficiency , the conversion up to 96%,the highest in the same industry .
2.the simple operation ,our charger each button use for each function .
3. our product will not hot after long time using.
4.With short circuit protection, overload protection and reverse connection protection.
Application
Airplane model batteries charging , remote control toys batteries charging , etc
Product Description
|
Product name |
Best selling products in america A60 Lipo, LiIo, LiFe, LiHV NiMH, NiCd,Pb RC battery charger |
|
Product model |
A60 |
|
Display |
Blue 1602 LCD display |
|
Input voltage |
9V-19V |
|
Support battery |
Lipo, LiIo, LiFe, LiHV BATT 1-6 cells |
|
NiMH, NiCd 1-15 cells |
|
|
Pb 1-12 cells |
|
|
Charging power |
60W (MAX) |
|
Charge current |
0.1—10A |
|
Discharge power |
5W (MAX) |
|
Discharge current |
0.1—2A |
|
Circulation charge and discharge |
Charging-discharging, Discharge-charge |
|
Balance current |
800MA(MAX) |
|
Display language |
English |
|

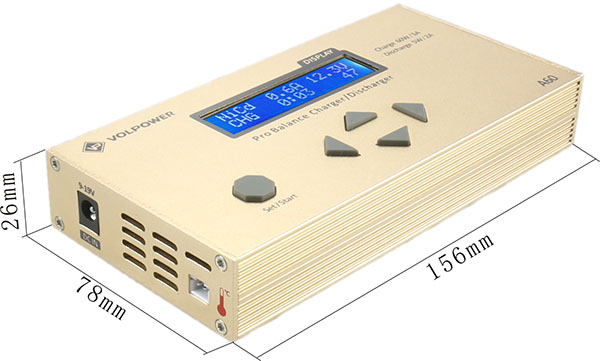

Product size |
156*78*26(MM) |
|
Weight(NW) |
About 300G |
|
Charge temperature range |
0℃ ~+70℃
|
|
Discharge temperature range |
-10℃ ~+70℃
|
|
Storage temperature range |
-20℃ ~45℃
|
|
Long term storage temperature range |
-10℃ ~40℃
|
|
Storage humidity |
45% ~85%RH |

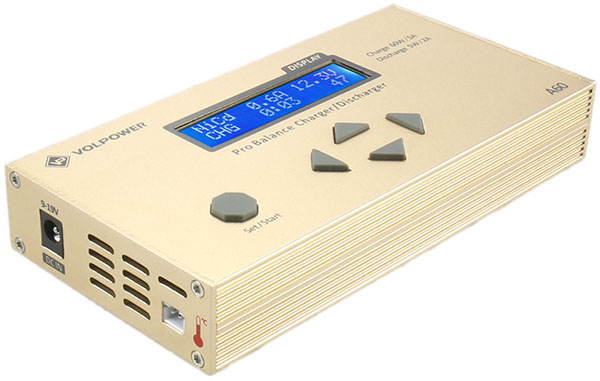

Product Picture
Main interface
When the charger is charging, the product model and company logo(A120 volpower) show on the display, then into PROGRAM SELECT LIPO PATT interface. At this point, LIPO BATT flashing, press the down key into program selection interface USER SET, LOAD DATA, PB BATT ,NICD BATT, NIMH BATT,LIFE BATT,LIHV BATT,LION BATT in turn.
Working interface
Lithium polymer battery application
Connect the power supply, display the main menu, press the up and down arrow keys, then select PROGRAM SELECT LiPo BATTERY main interfae in the main menu.
At this time the LiPo BATT words flashing, press the right keys to enter the work mode selection, current selection, voltage selection, start selection, preservation channel selection, time setting selection, capacity setting selection. Press the up and down keys, set the flashing parameters. Press Set/Start button to start or stop the charger.(setting mode of LiFe, LiHV, LiIo is the same with LiPo)

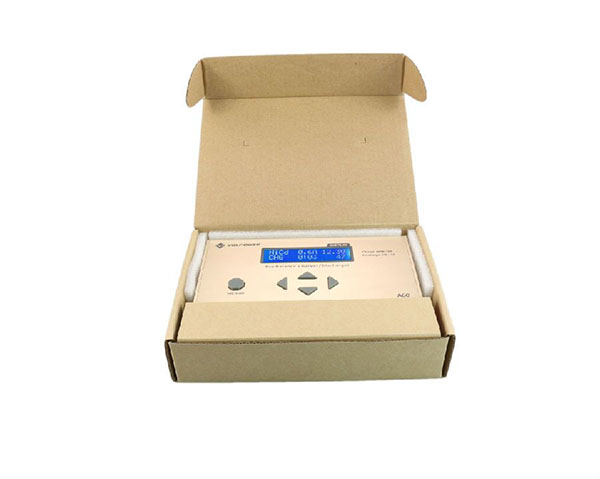

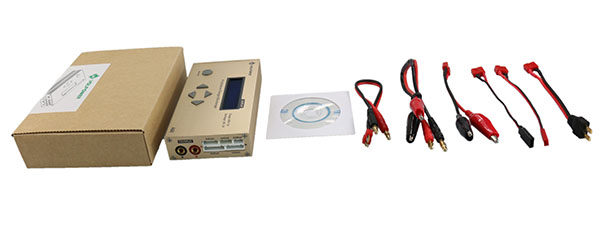

Packaging & Shipping
(1)Charger *1 piece
(2)CD-ROM (manual) *1 piece
(3)Quality warranty card *1 piece
(4)DC Input line*1 set(16# Silicone wire DC head + alligator clip)
(5)Charge output line *1set(5set)
Notice
u the charger work only in 9-19V DC power, access any AC power is strictly prohibited, including household 220V voltage.
u The charger is only suitable for chargeable lithium polymer LiPo, Lithium ion LiIo, Lithium iron LiFe, NiMH, NiCd and lead- acid Pb battery. Please don't charge the dry battery or other batteries. This operation may damage the battery or the charger, even cause a safety accident.
u For the highest 120W, please make sure that your DC power supply is above 135W.
u Please do not use the charger in the situation of unattended, if you need to go out, please stop the charger.
u Please don’t use too small, too thin or damaged wires.
u Please do not use the charger under the environment of fire. Ensure that the charger is working on a ventilated environment.
u Prevent water, dust or external objects into the charger.
u Please do not use the charger in the wet environment, do not operating the charger with your wet hand.
u Prohibit disassemble the charge by yourself.
u Please don't use the charger in the loose please, such as quilts, towels, blankets, pillows, etc.
u Please don't plug the charger's cooling fan and air inlet.
u It is strongly recommended to balance charge the lithium battery pack, and the unbalanced battery may cause damage in the process of use.
u If the battery is not particularly indicated, the usual charge rate is 1C. Please understand the battery parameters, select the appropriate current to charge the battery. Too high charge current may damage the battery, even fire.
u Children do not use this product in the situation of unattended.
