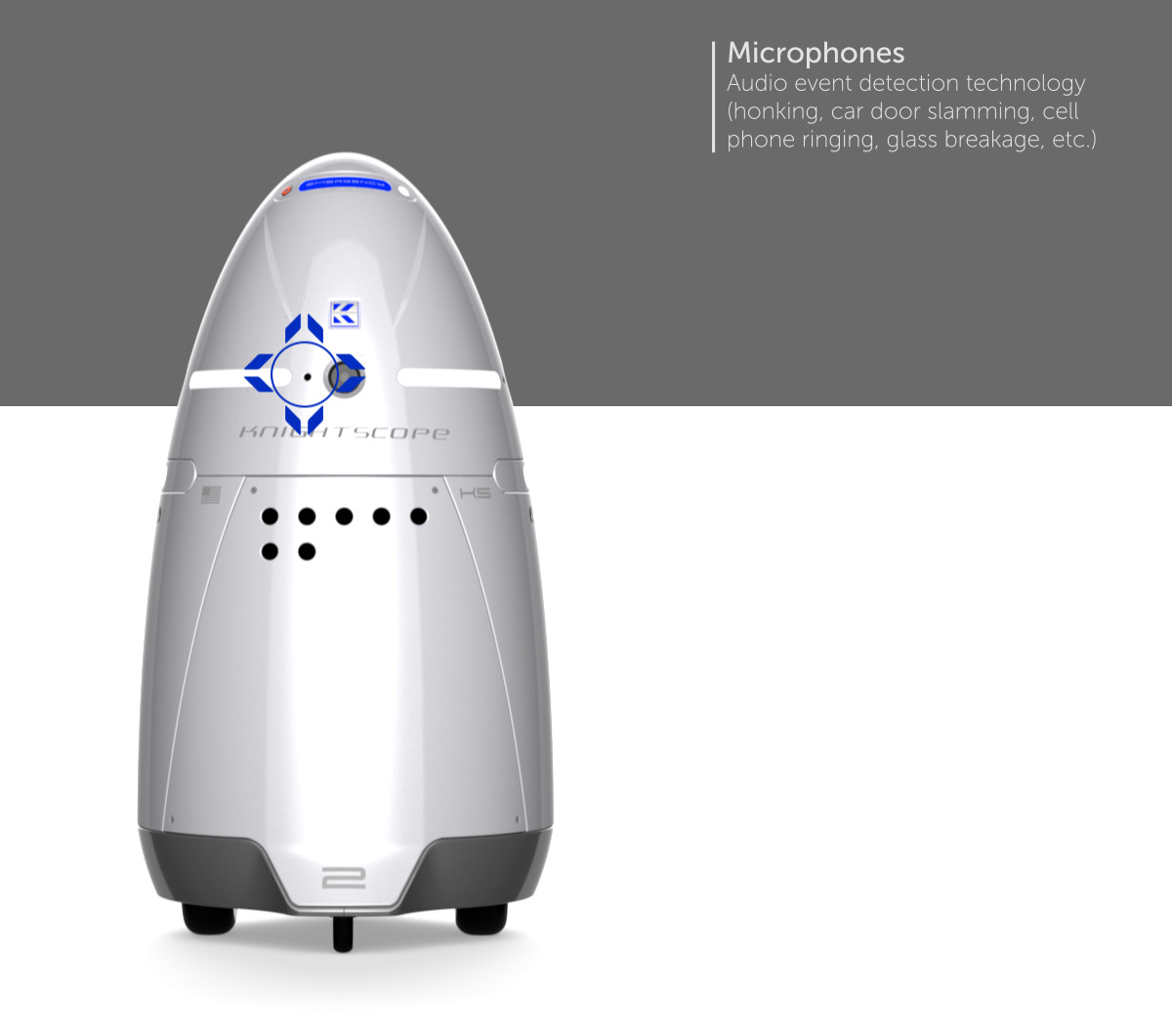

Data Machine

Autonomous Data Machines or ADM

Security Excellence - Past, Present and Future

Knightscope offers the only security solution capable of analyzing historical crime data, real-time on-site data, and social media feeds to generate truly valuable crime predictions. Our ADMs are an eye-catching physical presence that serve as front line guardians - autonomously protecting lives and property with an advanced array of sensor technologies.

Solid. Durable.
Made for the Great Outdoors.

Knightscope ADMs are built to operate outdoors. While everyone else is focused on fixed position cameras and indoor security, Knightscope chose a more dynamic and rugged approach.

According to figures from a large retail property developer, 65% of the criminal activity they encounter takes place outdoors. ADMs are the perfect way to complement a total security solution to provide protection before it breaches the doors of your establishment.

First Preservation
Second Preservation
Self Preservation - The First Law of Nature

To ensure its survival, each ADM includes numerous features to protect it against system failure, power drain and even mischief.

  • Health Status - ADMs send real-time machine health reports through the Knightscope Security Operations Center (KSOC). Details on current machine state, connectivity, battery health, charge details and weather are all immediately available to an operator or observer.
  • Autonomous Charging - like humans, ADMs know when they need to refuel. When appropriate, an ADM simply bellies up to the included charge mat to top off its lithium-ion battery pack. But this is no coffee break. Monitoring continues even while ADMs are charging.
  • Stranger Danger - ADMs love people, but they have a very important job to do at a specific location. Unauthorized attempts to relocate (i.e., kidnap) or tamper with a machine will result in a red alert at the KSOC and an ear piercing audible alarm at the machine. And all such events will be preserved in stunning high definition video for evidence.
Specifications


K5 Specifications

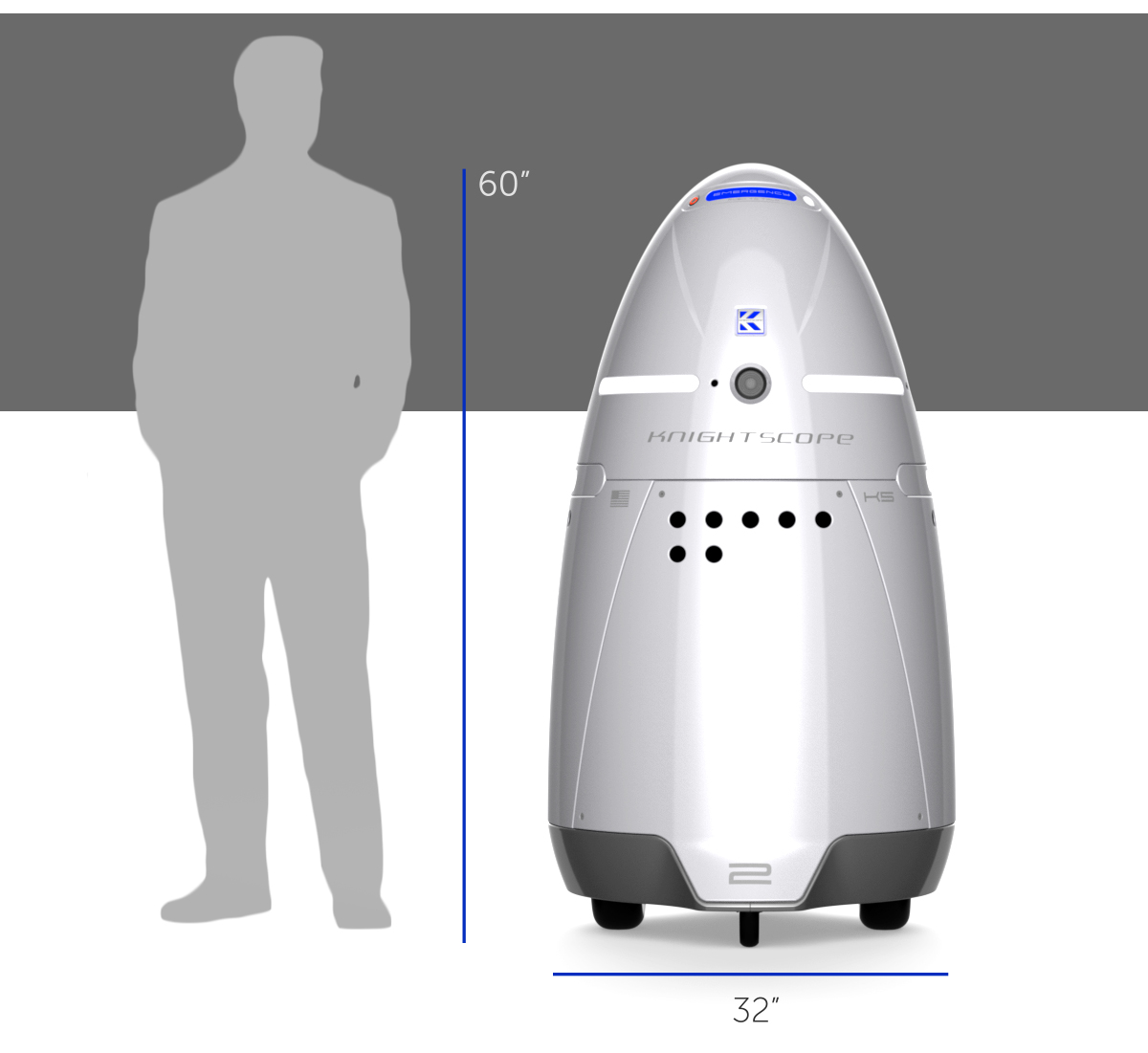

Dimensions
Height60 Inches (1,524 mm)Width32 Inches (813 mm)Length36 Inches (914 mm)Weight300 Pounds (136 kg)
Illumination
LEDs30 White @ 105 Lumens Each
4 Multi-color @ 105 Lumens EachInfrared6 @ 850nm (Adjustable Luminosity)
Sensors

Sensors

Sensors

Sensors

LIDAR (x2)

SICK Light Image Detection and Ranging - 20 to 67 msec Scan Time; 905 nm Laser Frequency; Laser Safety "Class 1"; 0.01 to 20 m Scan Distance; 0 and -23 Degree Scan Angles

Video Cameras

Samsung - 1/4" progressive scan CMOS 3 Megapixel Image Sensor; Auto Exposure; Backlight Compensation; Auto White Balance; Face and Motion Detection; Day and Night Modes

GPS

Phidgets - 2.5 m Circular Error of Probability; Altitude, Heading, Velocity, Time, and Date; "Hot Start" Signal Re-acquisition in < 1 sec

License Plate Recognition (LPR)

Vigilant - Video Speed of 30 Frames per Second; Reads 300 License Plates per Minute; Focal Length of 144 - 216 inches (3,658 - 5,486 mm); Power Over Ethernet; Data Output in Form of Alphanumeric Characters, License Plate Image and Geo-tagged Location

Additional Sensors

Weather Station - Temperature, Humidity, Barometric, CO2 Levels, and Sound Levels; 6 Degree-of-Freedom Inertial Measurement Unit; Wheel Odometry

KSOC

Managed Intelligence

Knightscope Security Operations Center or KSOC

The best hardware in the world is virtually pointless without an effective user interface. Knightscope worked tirelessly to develop a stunning interface that helps the user accomplish a task simply and efficiently. Essentially, it is a memorable experience in a convenient browser-based package.

But while the look and feel is undeniably important, the true substance is formed in its functionality. Everyone has had the frustrating experience of getting 'lost' in an interface, unable to work out where to go. Navigating the KSOC is intuitive to the point of being second nature and almost invisible. There is clear meaning in graphics and content, and controls are where they should be - close to the item requiring action.
