Electric platform ready for payload and autopilot integration
-
110 minute endurance with 2.8kg payload
-
23 liters of payload volume
-
Up to 6.6kg payload capacity
-
Onboard 6V and 12V onboard power output
-
Quick replaceable battery cartridge
-
Low noise signature
|
-
Low vibration
-

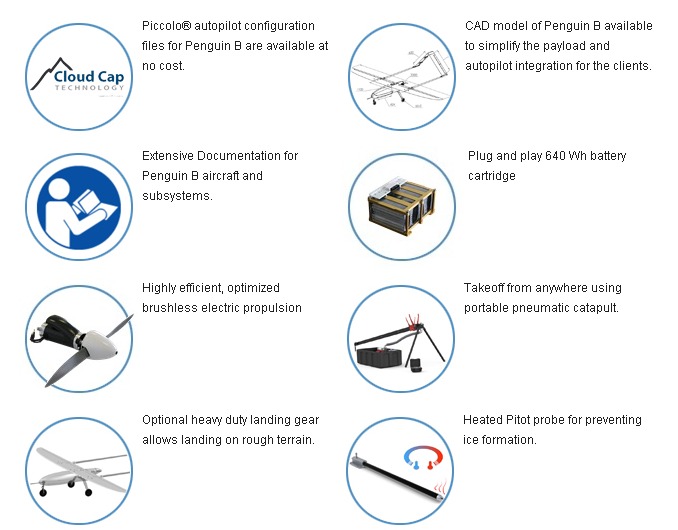

Free Piccolo® autopilot configuration files
-

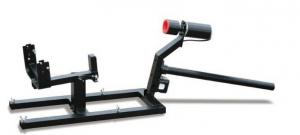

Catapult, car-top or runway takeoff
-
Wide range of standard subsystems and
options
-
Extensive documentation set
-
Short lead time for standard configurations
|
Penguin's philosophy:
Electric Penguin BE unmanned aircraft platform shares the same flexibility as original gas engine Penguin B unmanned aircraft. The electric version of the Penguin BE is a perfect choice for the short duration missions. Electric propulsion offers simple and clean operation with excellent reliability and simple maintenance. Electric propulsion has outstanding low noise and low vibration characteristics.
The aircraft is available as a platform, ready for the autopilot and payload integration by the customer.
Electric propulsion retrofit package is available for converting gas Penguin B to electric propulsion.
Performance:

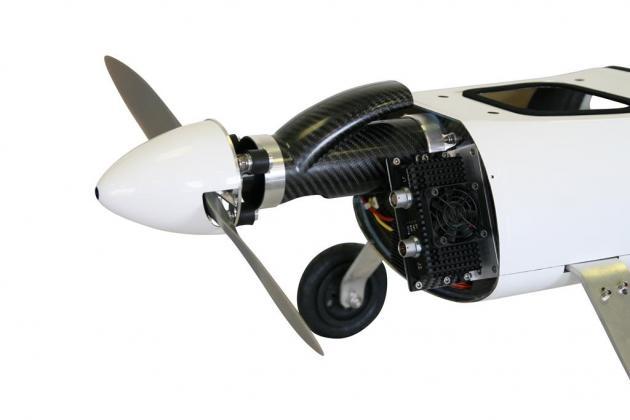

Sleek and efficient design gives best in class performance. Highly efficient, optimized electric propulsion with the matched propeller allows up to 110 minutes of endurance with 2.8 kg payload. The maximum payload capacity is 6.6 kg. The optimized high lift flap system provides stall speeds of less than 13 m/s.
Battery Cartridge:

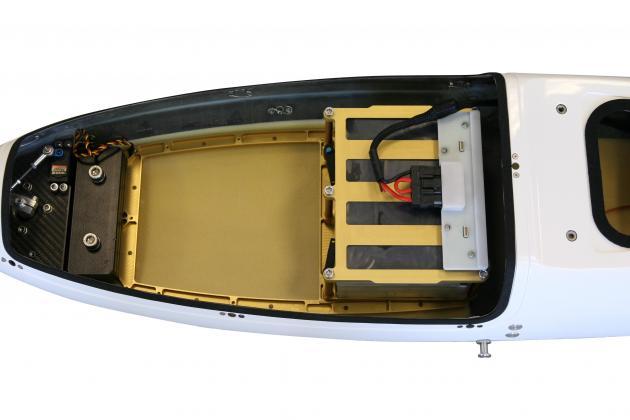

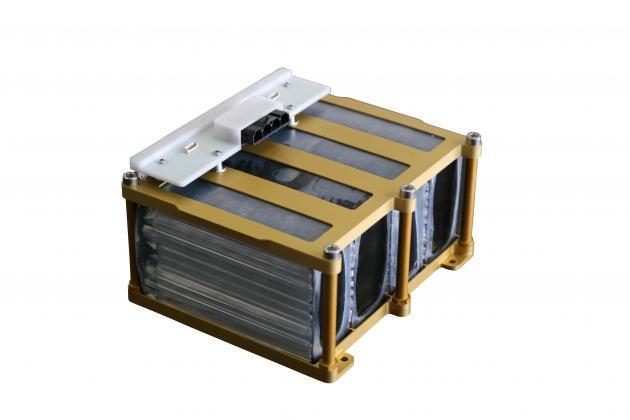

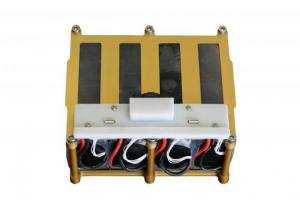

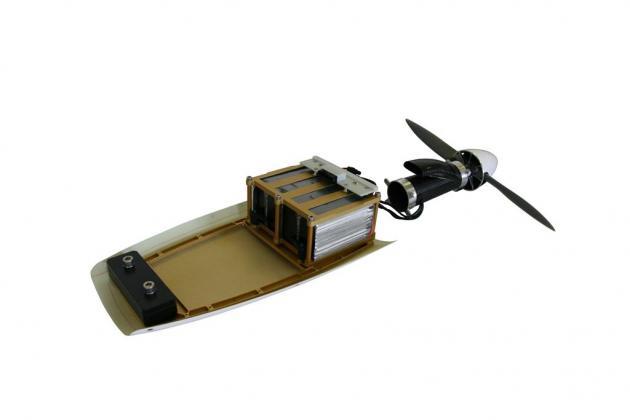

The 640 Wh battery cartridge is custom made from 48 Lithium Polymer cells and has 145 Wh/kg specific energy. The cartridge has rugged aluminum structure and integrated PCB that reduces the amount of wiring and simplifies charging. Battery cartridge can be changed in less than 1 minute.
Modular design:
All components of the Penguin BE are easily removable and completely interchangeable. Wing splits in three 1.1 meter sections and the V-tail splits in two parts. High-end industrial grade push-pull connectors are installed in tail-boom joints as standard. The quick release fastening is used extensively in the Penguin B airframe. Oversize access covers are equipped with DZUS type 1/4 turn quick fasteners, tail-booms are equipped with a purpose developed quick release aluminum joints. Battery cartridge is fastened with the quick release spring loaded pins.
