INTEGRATION MADE EASY

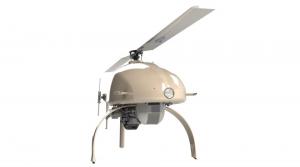

The HEF 30 has been designed to be a flexible, multi-sensor platform. This allows customers to perfectly adapt the system to their mission requirements without complicated and expensive custom development projects. A wide variety of options are available to further expand the functionality of the HEF 30 and the list is still growing.
There are many ways to expand the capabilities of the HEF 30 system.
Operating multiple sensors at once, increasing operational range, improving
flexibility and even integrating into Air Traffic Control environments, the HEF
30 can do it all. The payload bay of the HEF 30 is located underneath the nose,
offering an unrivaled amount of clear space without obstructions, to mount large
or odd-sized payloads. The built-in converters and IP based data-link system
allow the live transmission of many different types of payload data.
The true potential of the HEF 30 can be unlocked when vastly increasing its
operational range. High Eye designed a relatively simple to use tracking antenna
system, based on off-the-shelf technology. The heart of the tracking antenna is
a multifunctional Pan-Tilt Unit made by Flir®. It is directly controlled by the
Ground Control Station, using live autopilot data. It can also be expanded by a
separate IMU, allowing the tracking antenna to be used on moving platforms,
making it ideal for maritime and naval applications. The range of the system
when using this antenna depends on the frequency, bandwidth and amount of data
an operator would like to send. In general, the range is increased beyond 50 km
from the Ground Control Station.
EPSILON 135
The Epsilon 135 is a compact single-sensor payload supplied by UAVFactory® and is a true newcomer on the market of professional UAV payloads. A combination of out-of-the box thinking and the absence of anything which might be superfluous makes it a very cost-effective solution which satisfies most operator’s needs. It can be supplied with a daylight or IR sensor and features options like 720P High Definition output, IP/H.264 encoding, video stabilisation, onboard recording, object tracking, motion detection and a moving target indicator. For more information, see:
