PCI-EXC-4000PCI/xx card & M4K825CAN module
发布时间:2022-05-10阅读:74

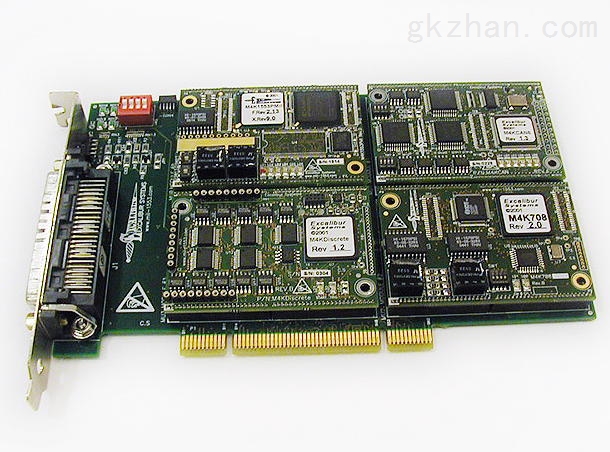

EXC-4000PCI/xx card & M4K825CAN module

对于PCI总线的exc-4000pci / XX卡最多支持四十arinc-825 CAN总线通道使用m4k825can模块。在接收模式下,模块将所有或选择的消息存储在附加到每个消息的状态和时间标记信息中.。在传输模式下,该模块通过传输带宽帧,它允许数据传输的调度,并减少了主机干预的需要.

Exc-4000pci / XX提供的C驱动程序,包括源代码。为I/O连接提供的交配连接器。

请参阅多协议4000模块的附加信息的协议,可以添加到这张卡。

订货型号:

产品型号描述
EXC-4000PCI/xxMulti-protocol interface for PCI compatible systems. [4 modules]
SAx   M4K825CAN22 independent channels of ARINC-825 CAN bus channels
SBx   M4K825CAN4Same as above with 4 independent channels
SCx   M4K825CAN6Same as above with 6 independent channels
SDx   M4K825CAN10Same as above with 10 independent channels
X4K-xx50cm cable adapter for EXC-4000 card [optional]


Note:"xx" specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
